Extrusion Blow Molding Machine
– for middle size bottles or container MW-2S5L
Benefits of SINCO Extrusion Blow Molding Machine
- Reasonable Design
- High Output
- Run Smoothly
- High Stability
- Power Saving
- Easy Operation
- Servo Driving
- Full After Sales Support
- Competitive Price

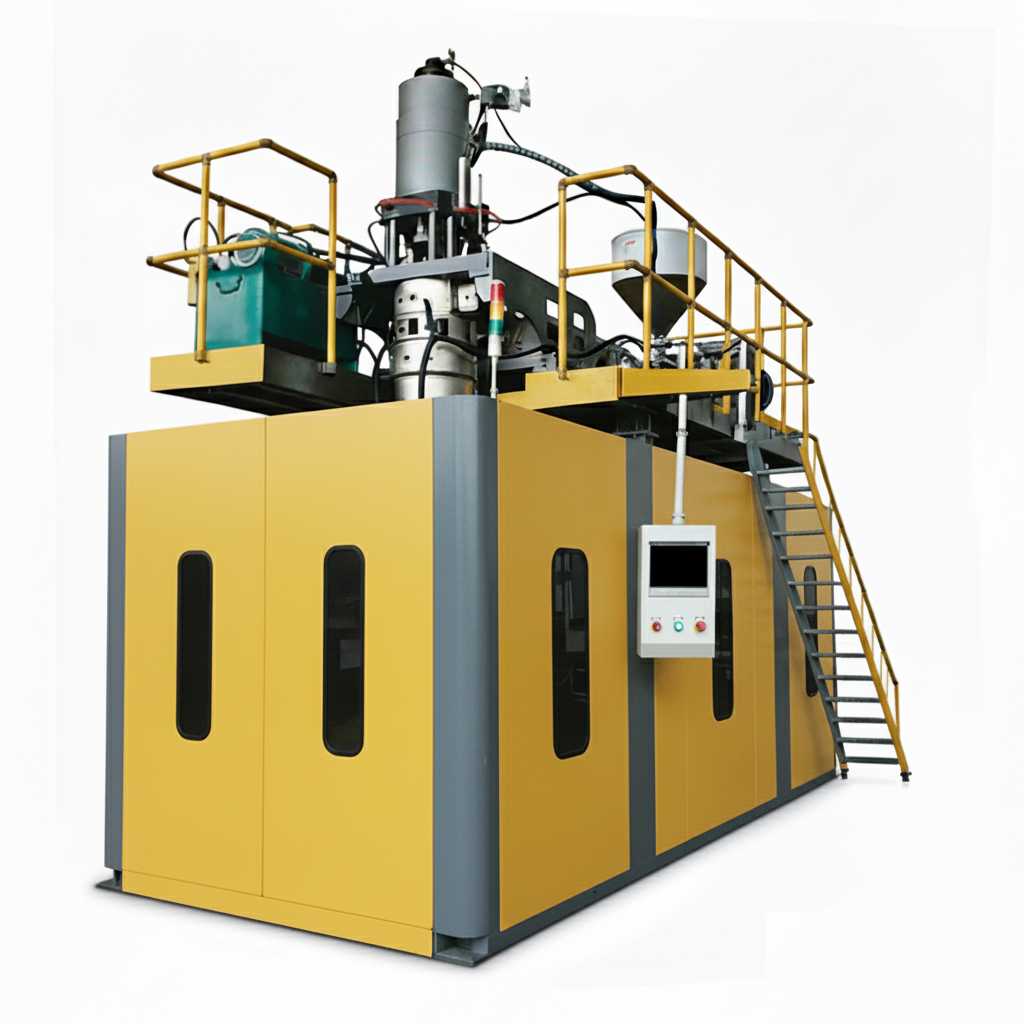

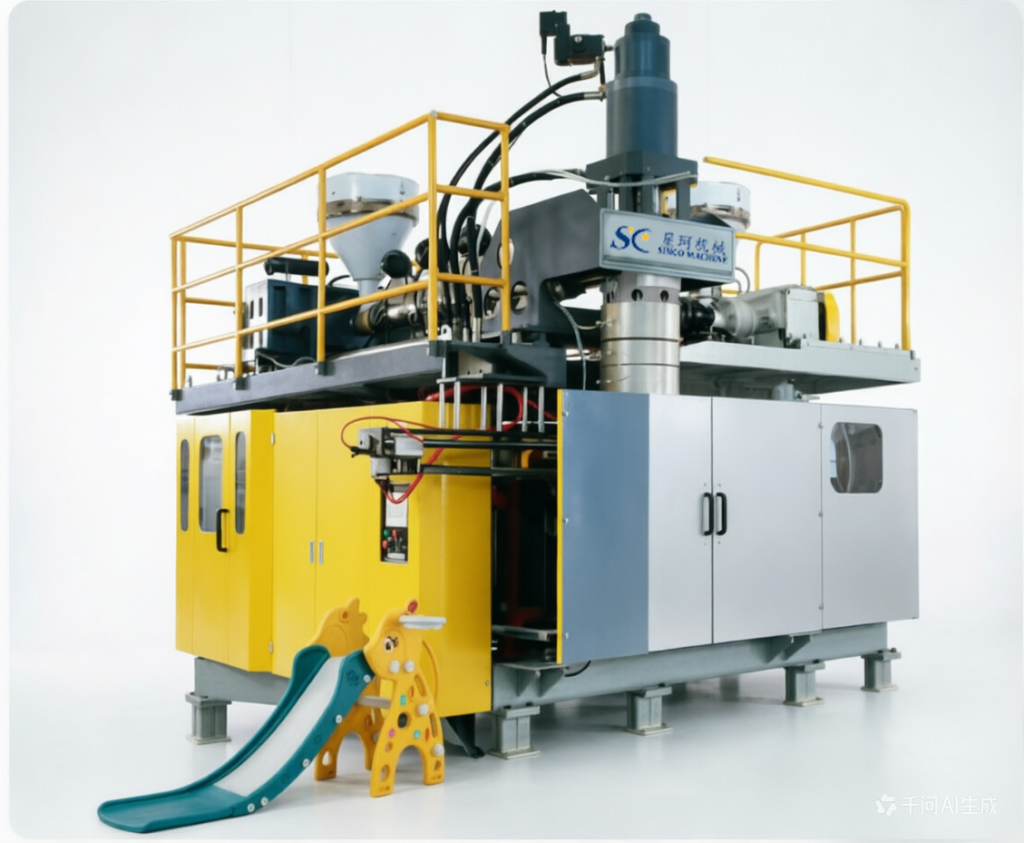

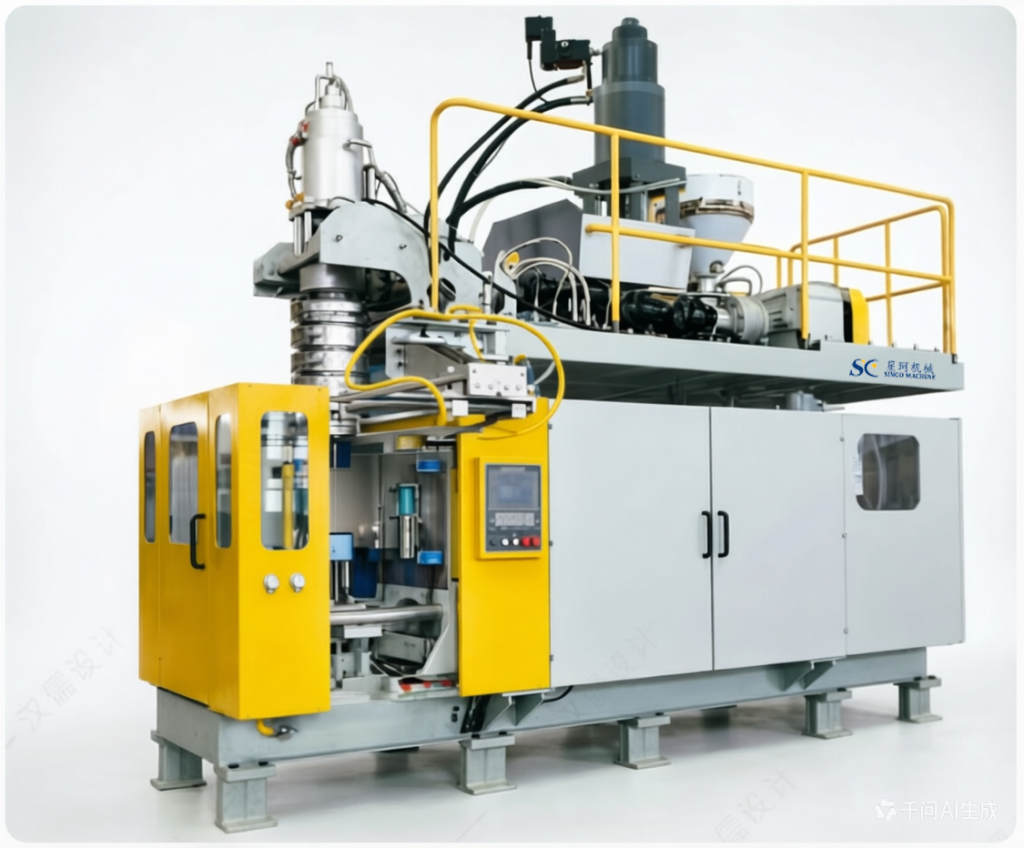

Extrusion Blow Molding Machine for middle size bottles or container SC-2S5L
Extrusion Blow Molding Machine for middle size bottles or container SC-2S5L

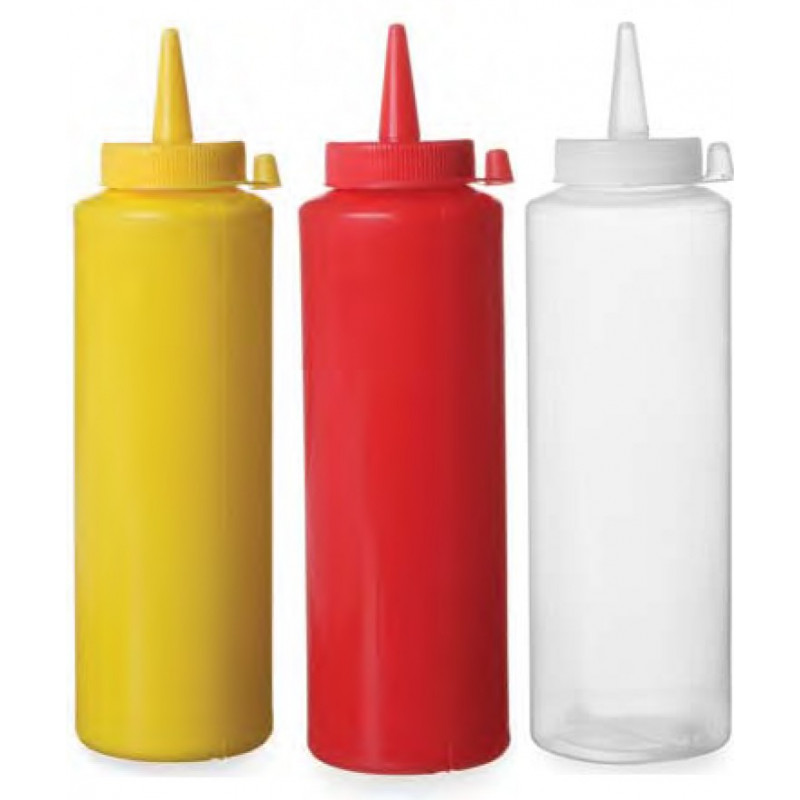

It’s best choise for bottle neck: 18–100mm.It can be used for your production of chemical barrel, toolbox, cosmetic bottle, detergent bottle, engine oil and lubrication container, and also drink bottle, amusement devices and transport facilities.
Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
Technology Parameter
Video
Send Inquiry
Technology Parameter
Model no. | Unit | MW-2S5L |
Max.product volume | L | 5 |
Dry cycle | pc/h | 600*2 |
Screw diameter | mm | 70 |
Screw L/D ratio | L/D | 24-26 |
Screw motor power | kw | 22 |
Screw heating capacity | kw | 4.7 |
No.of heating zone | zone | 3 |
Output of HDPE | kg/h | 70-85 |
Oil pump drive power | kw | 11 |
Clamping force | kn | 100 |
Mold stroke | mm | 200-500 |
Size of mould(W*H) | mm | 370*400 |
Mould thickness | mm | 180-290 |
Max.die diameter | mm | 160 |
Die heat capacity | kw | 7-11 |
Blowing pressure | mpa | 0.7 |
Blowing air volume | M³/Min | 0.5 |
Cooling water pressure | mpa | 0.3 |
Water consumption | L/Min | 80 |
Weight of machine | ton | 6.5 |
Size of machine(L*W*H) | m | 3.4*2.3*2.4 |
Video
Send Inquiry
SINCO Extrusion Blow Molding Machine
SINCO Extrusion Blow Molding Machine which also named extrusion moulding machine from 2000, our machine has the function of extrusion blowing machine for your produce PE,PP, ABS material products. It can be used for your production of chemical barrel, toolbox, cosmetic bottle, detergent bottle, engine oil and lubrication container, and also drink bottle, amusement devices and transport facilities.
Why Global Manufacturers Choose the SINCO MW-2S5L?
SINCO Extrusion Blow Molding Machine is more than just specifications; it’s a partnership for your productivity. Here’s how we deliver value:
Maximized Output & Stability: Featuring a servo-driven system and robust clamping force of 100kN, the MW-2S5L ensures smooth, continuous production with minimal downtime, delivering consistent quality for every batch.
Significant Energy Savings: Our optimized design and efficient hydraulic system consume less power, directly reducing your long-term operational costs and improving your bottom line.
Unmatched Ease of Use: With a user-friendly interface and automatic process control, operator training is simplified, and production efficiency is maximized from day one.
End-to-End Support: From initial installation and on-site training to prompt spare parts supply, our local technical support team is committed to keeping your production line running.
SEND YOUR INQUIRY
Success in Action: Application Scenarios
The MW-2S5L is the versatile choice for creating durable, hollow plastic products across industries.

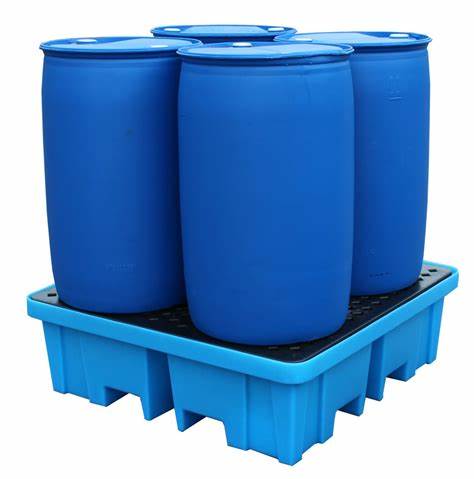

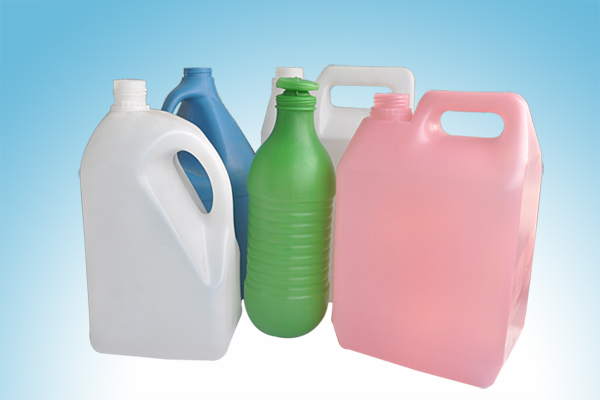

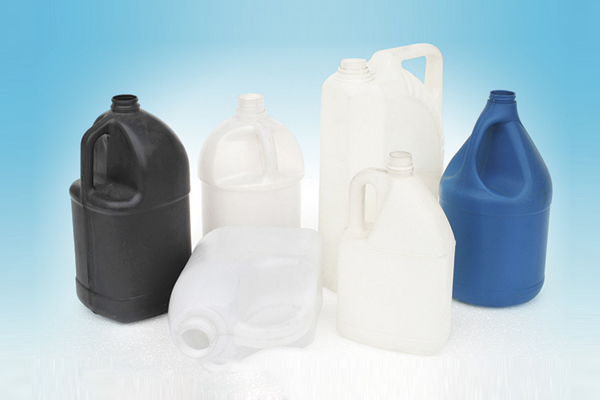

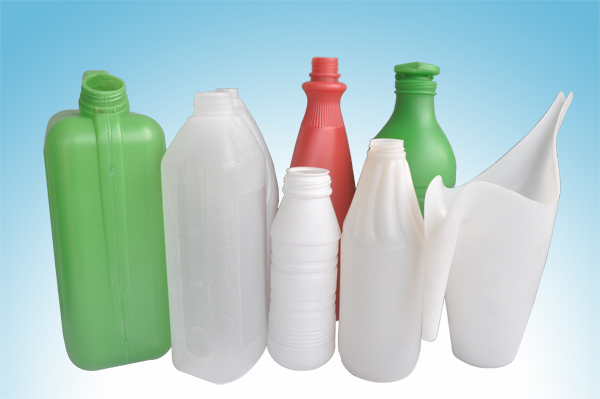

Chemical & Lubricant Packaging: Reliably produces 1-5L chemical barrels, engine oil, and lubricant containers with excellent sealing and strength.

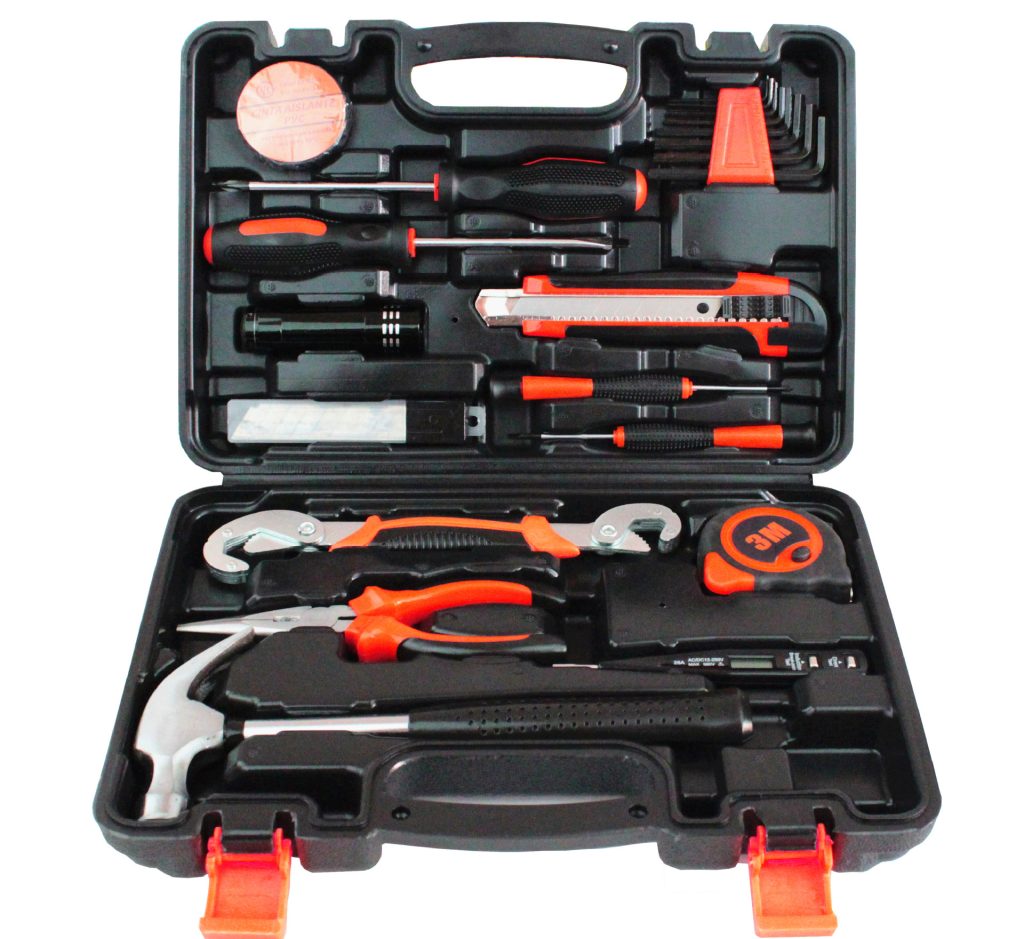

Consumer & Industrial Goods: Ideal for manufacturing toolbox casings, detergent bottles, and various thick-walled industrial parts.
Cosmetic & Personal Care: Creates uniform and high-quality bottles for shampoos, lotions, and liquid soaps.

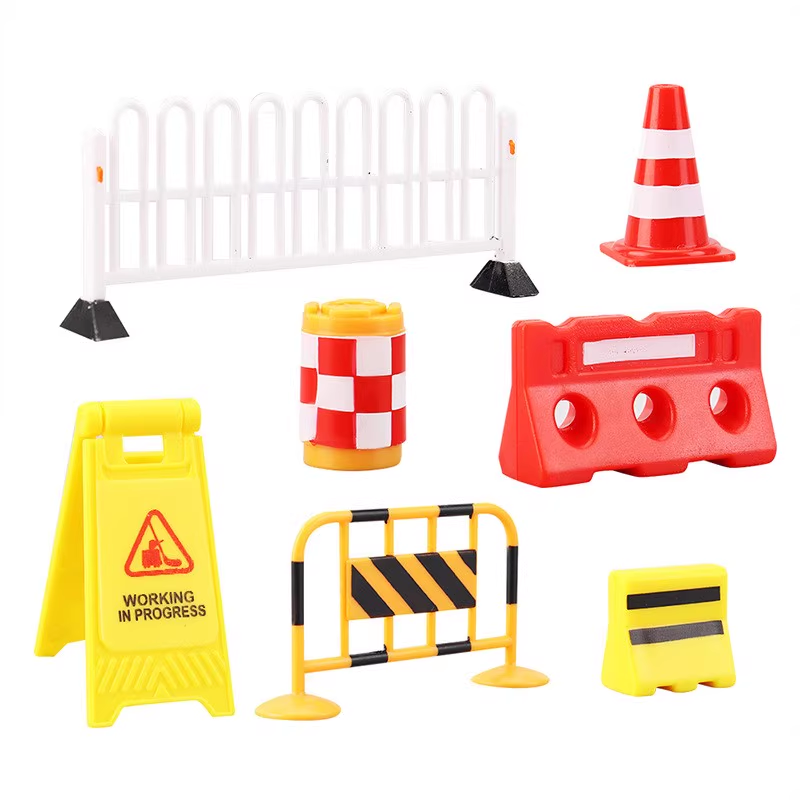

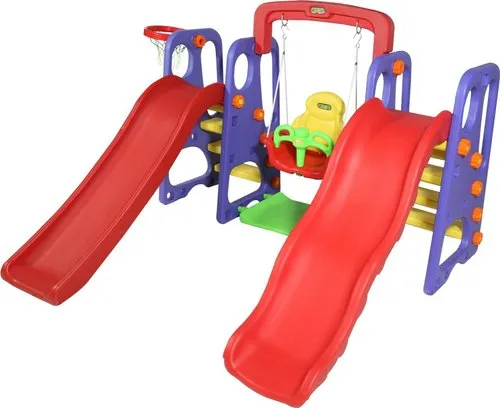

Specialty Items: Also suitable for producing components for amusement devices and transport facilities.
Our Commitment to Your Success: The SINCO Service Promise
We stand by our product throughout its entire lifecycle.
Pre-Sales Consultation: Expert advice and customized production solution planning.
Installation & Training: Professional on-site installation and comprehensive operator training.
Warranty & Support: 24-month standard warranty with lifelong technical consultation.
Parts & Maintenance: Guaranteed availability of genuine spare parts and remote diagnostic support.
FAQ:
What is an extrusion blow moldin machine (EBM)?
EBM extrudes a molten plastic tube (parison), closes the mold, and blows air to form a hollow part. It’s widely used for HDPE/PP bottles, jerry cans, drums, and tanks.
When should I choose an accumulator blow molding machine?
Choose an accumulator head for large parts or thicker walls—like water tanks, drums, and industrial containers—because it delivers a large, fast parison shot more consistently.
What is a multi layer blow molding machine used for?
It makes containers with multiple layers (often co-extruded) to improve barrier performance, stiffness, or use regrind in the middle layer. Common for chemical packaging and specialty bottles.
Is an HDPE blow moulding machine typically EBM?
Most HDPE hollow containers are made on extrusion blow molding machines. HDPE processes well in EBM and is popular for durable packaging like detergent, milk, and chemical bottles.
What are the benefits of a double station blow molding machine?
A double-station design improves output by running two mold stations in one machine—while one side is molding, the other can be unloading/loading—helping reduce cycle time and boost productivity.
